Thermal Lab

The purpose of thermal engineering laboratory is to give conceptual and principles involving in thermal science, especially focusing on Internal Combustion Engine, Steam Generators and Compressors. The mobility sector utilizes IC combustion engine which serves as the heart of automobile industry. The study of IC engines is vital for any mechanical engineer. Students will learn about the measurement of performance, retardation, heat balance, frictional power, etc. Study and testing of various oil properties for using as a fuel and lubricant in internal combustion engine and thermal systems.

360 Degree Lab View

Specifications

Cut section model of 4 stroke diesel engine

Type	4 Stroke, High Speed, Single Cylinder, Vertical Diesel Engine
Power	5 BHP / 3.6 kW
Bore	80 mm
Stroke	110 mm
C.R	16:1
Speed	1500 rpm
Make	Kirloskar

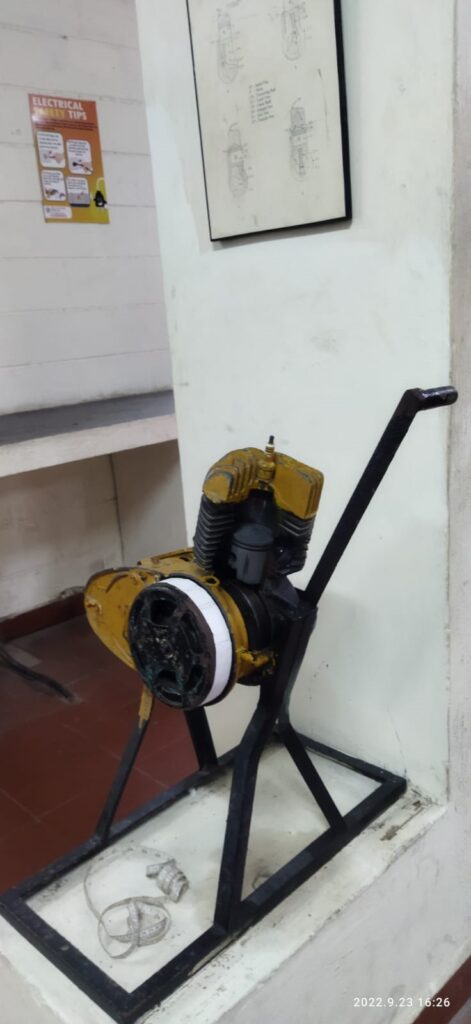

Cut section model of 2 stroke petrol engine

Type	2Stroke,Variable speed, Single Cylinder, Vertical Petrol Engine
Power	9 BHP / 6.61 kW
Bore	61.5 mm
Stroke	58 mm
C.R	6.6:1
Starting	Kick Starter pedal
Speed	5000 rpm
Make	Escorts Ltd., (Rajdoot)

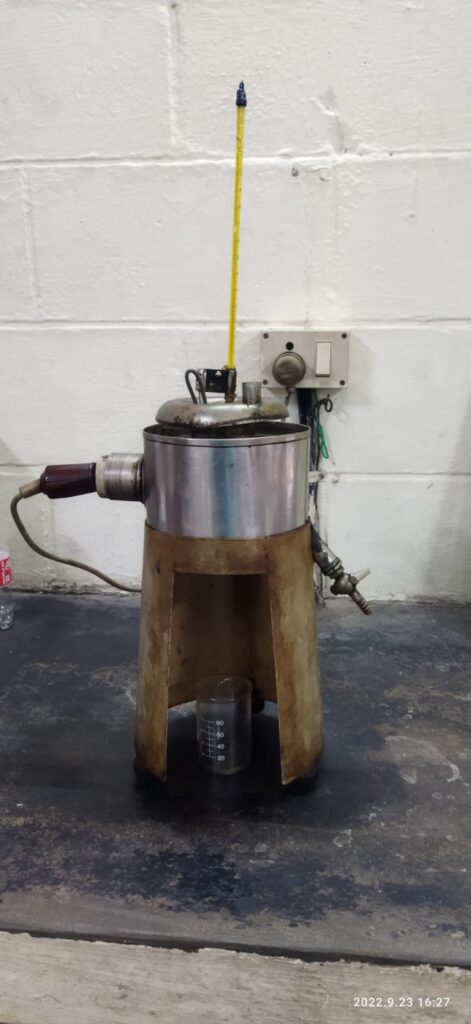

Redwood Viscometer Apparatus.

Cylindrical oil Cup
Height	90 mm
Diameter	46.5 mm
Orifice
Diameter	1.62 mm
Internal Length	10 mm

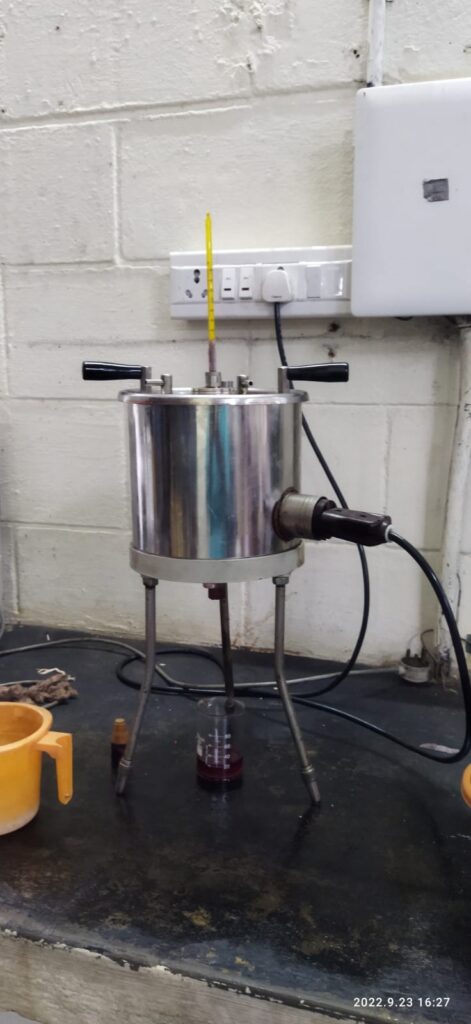

Saybolt Viscometer Apparatus.

Cylindrical oil Cup
Height	92 mm
Diameter	48.5 mm
Orifice
Diameter	1.92 mm
Internal Length	10 mm

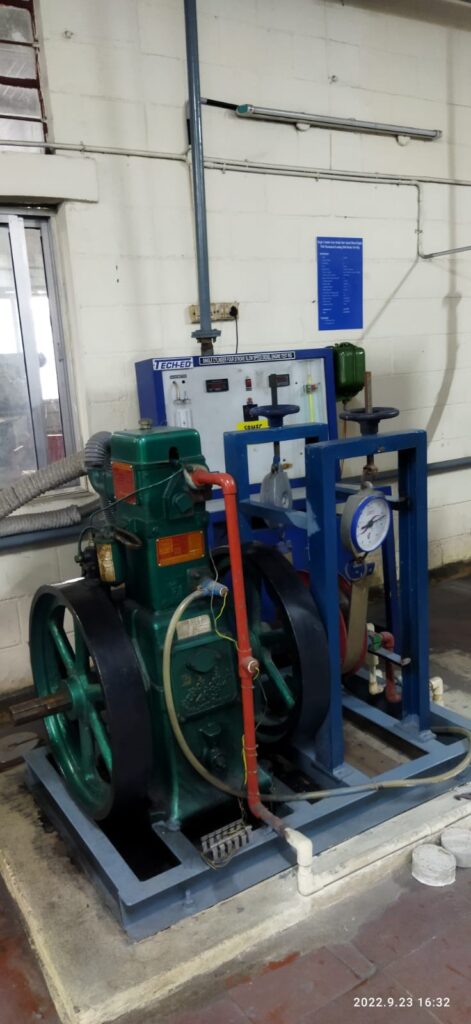

High Speed Diesel Engine Test Rig.

S.No	Test-Rig Specifications
1.	No. of cylinders ‘n’	1
2.	Bore diameter ‘D’	80 mm
3.	Stroke length ‘L’	110 mm
4.	Operating speed ‘N’	1500 rpm
5.	Rated power ‘P’	3.75 kW
6.	Compression ratio	17.5:1
7.	Fuel oil	Diesel
8.	Sp. gravity of fuel ‘SF’	0.84
9.	Cal. value of fuel ‘CV’	42500 kJ/kg
10.	Orifice Diameter’s’	20 mm
11.	Radius of brake drum (R)	0.175 m

Petrol Engine Test Rig.

S.No	Test-Rig Specifications
1.	No. of cylinders ‘n’	1
2.	Bore diameter ‘D’	76 mm
3.	Stroke length ‘L’	60 mm
4.	Operating speed ‘N’	3600 rpm
5.	Rated power ‘P’	2.94 kW
6.	Compression ratio	8:1
7.	Fuel oil	Petrol
8.	Sp. gravity of fuel ‘SF’	0.74
9.	Cal. value of fuel ‘CV’	45000 kJ/kg

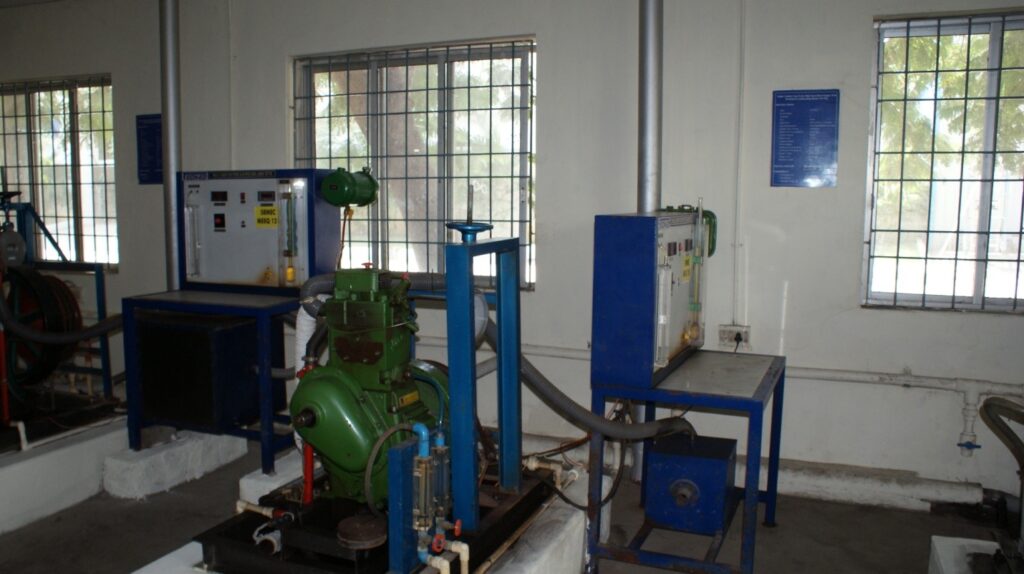

Optimum Cooling Test Rig.

S.No	Test-Rig Specifications
1.	No. of cylinders ‘n’	1
2.	Bore diameter ‘D’	80 mm
3.	Stroke length ‘L’	110 mm
4.	Operating speed ‘N’	1500 rpm
5.	Rated power ‘P’	5.2 kW
6.	Compression ratio	17.5:1
7.	Fuel oil	Diesel
8.	Sp. gravity of fuel ‘SF’	0.84
9.	Cal. value of fuel ‘CV’	42500 kJ/kg
10.	Orifice Diameter’s’	20 mm
11.	Radius of brake drum (R)	0.175 m

Retardation Test Rig.

S.No	Test-Rig Specifications
1.	No. of cylinders ‘n’	1
2.	Bore diameter ‘D’	114 mm
3.	Stroke length ‘L’	140 mm
4.	Operating speed ‘N’	650 rpm
5.	Rated power ‘P’	4.41 kW
6.	Compression ratio	16:1
7.	Fuel oil	Diesel
8.	Sp. gravity of fuel ‘SF’	0.84
9.	Cal. value of fuel ‘CV’	42500 kJ/kg
10.	Orifice Diameter’s’	20 mm

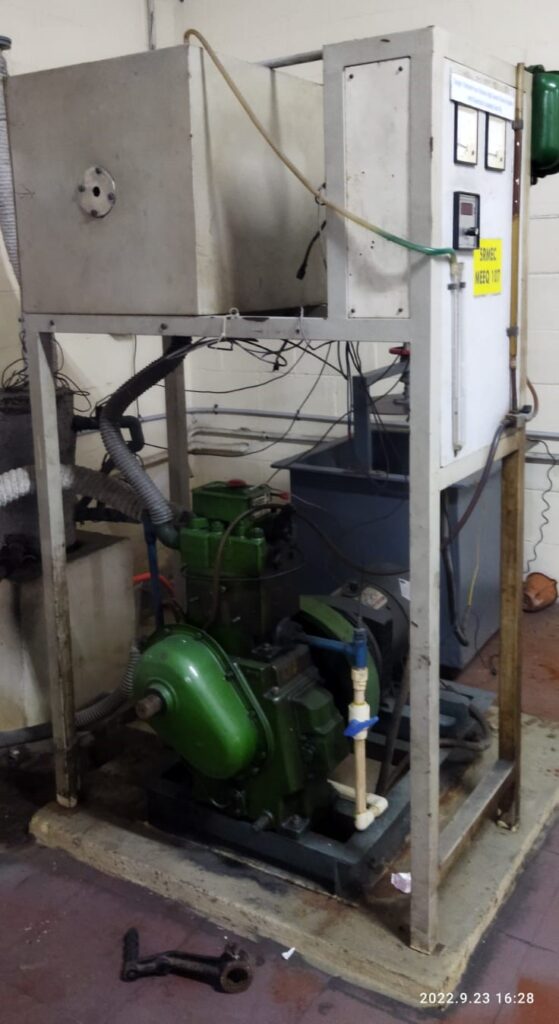

Heat Balance without Calorimeter Test Rig.

S.No	Test-Rig Specifications
1.	No. of cylinders ‘n’	1
2.	Bore diameter ‘D’	114 mm
3.	Stroke length ‘L’	140 mm
4.	Operating speed ‘N’	650 rpm
5.	Rated power ‘P’	4.41 kW
6.	Compression ratio	16:1
7.	Fuel oil	Diesel
8.	Sp. gravity of fuel ‘SF’	0.84
9.	Cal. value of fuel ‘CV’	42500 kJ/kg
10.	Orifice Diameter’s’	20 mm

Heat Balance with Calorimeter Test Rig.

S.No	Test-Rig Specifications
1.	No. of cylinders ‘n’	1
2.	Bore diameter ‘D’	80 mm
3.	Stroke length ‘L’	110 mm
4.	Operating speed ‘N’	1500 rpm
5.	Rated power ‘P’	3.7 kW
6.	Compression ratio	17.5:1
7.	Fuel oil	Diesel
8.	Sp. gravity of fuel ‘SF’	0.84
9.	Cal. value of fuel ‘CV’	42500 kJ/kg
10.	Orifice Diameter’s’	20 mm
11.	Dynamometer Arm Length (L_A)	180 mm

Valve Timing Diagram for CI Engine Cut Section Model.
Port Timing Diagram for SI Engine Cut Section Model.
Determination of Viscosity Using Redwood Viscometer.
Determination of Viscosity Using Saybolt Viscometer.
Performance Test on High Speed Diesel Engine with Rope Brake Loading Device
Performance Test on Petrol Engine with Electrical Loading Device.
Retardation Test on Slow Speed Diesel Engine with Belt Brake Loading Device.
Determination of Optimum Cooling Water Temperature for Higher Thermal Efficiency.
Heat Balance Test without Calorimeter in Four Stroke Slow Speed Diesel Engine Using Rope Brake Loading Device.
Heat Balance Test on Diesel Engine using Eddy Current Dynamometer

No data was found

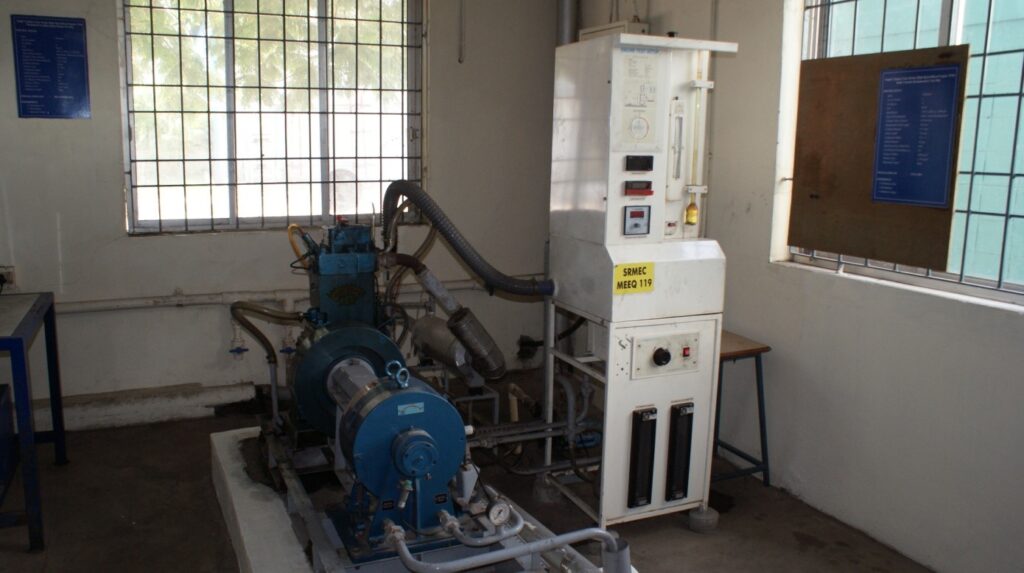

Computerized Research Engine

S.No	Test-Rig Specifications
1.	No. of cylinders ‘n’	1
2.	Bore diameter ‘D’	80 mm
3.	Stroke length ‘L’	110 mm
4.	Operating speed ‘N’	1500 rpm
5.	Rated power ‘P’	3.7 kW
6.	Compression ratio	17.5:1
7.	Fuel oil	Diesel
8.	Sp. gravity of fuel ‘SF’	0.84
9.	Cal. value of fuel ‘CV’	42500 kJ/kg
10.	Orifice Diameter’s’	20 mm
11.	Dynamometer Arm Length (L_A)	200 mm

S.No	Research Experiments
1.	Performance Test
2.	Combustion Test
3.	Emission Test
Software used : IC Engine soft

Computerized CRDI - VCR Research Engine.

S.No	Test-Rig Specifications
1.	No. of cylinders ‘n’	1
2.	Bore diameter ‘D’	80 mm
3.	Stroke length ‘L’	110 mm
4.	Operating speed ‘N’	1500 rpm
5.	Rated power ‘P’	3.5 kW
6.	Compression ratio	12.1 to 18.1
7.	Fuel oil	Diesel
8.	Injection Point Variation	0 to 250 BTD
9.	Sp. gravity of fuel ‘SF’	0.84
10.	Cal. value of fuel ‘CV’	42500 kJ/kg
11.	Orifice Diameter’s’	20 mm
12.	Type of Dynamometer	Eddy Current
13.	Dynamometer Arm Length (L_A)	200 mm

S.No	Research Experiments
1.	Performance Test
2.	Combustion Test
3.	Variable Angel and Variable Injection Ratio
4.	Variable Compression Ratio
5.	Emission Test
Soft Ware used : Nira Software, IC Engine Soft

Profile

The performance test, heat balance test, the retardation test and emission test can be carried in variety of IC engines like petrol/diesel/biodiesel fueled with single/double/multi cylinder engines with modern mechanical/electrical/hydraulic loading devices. The modern digital 5 gas analyzer and AVL smoke meter is available to do emission and smoke test.
