Laboratory for Sensor, Energy and Electronic Devices (Lab SEED)- RB210

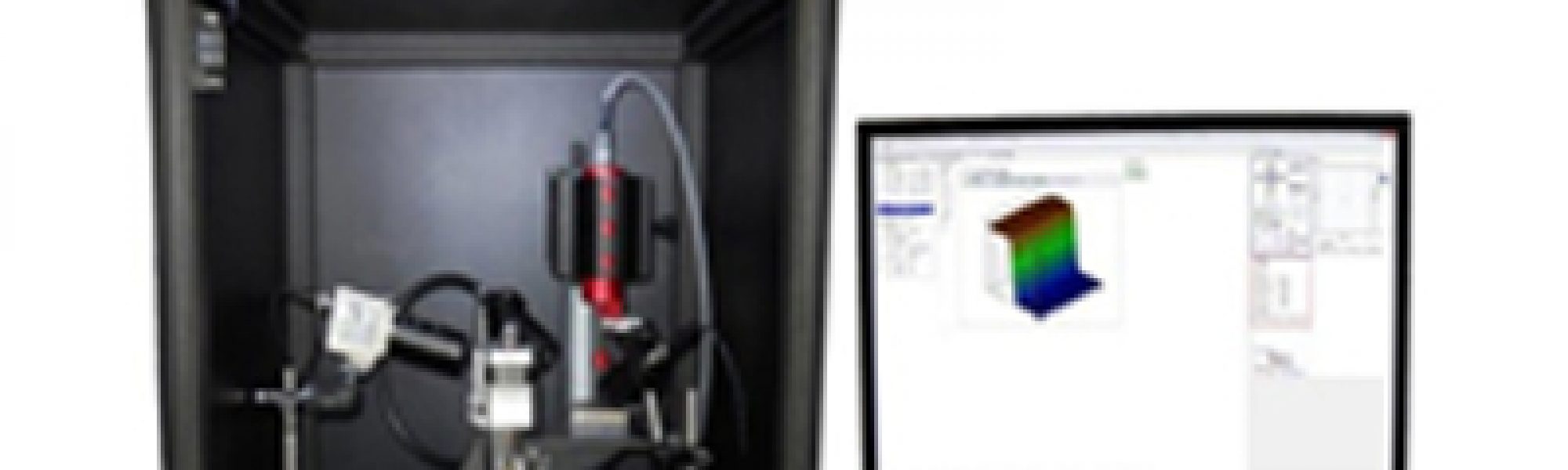

Manufacturer: KP Technology, Model No.: SKP 5050,Tip diameter: 50 µm, Work function resolution: 1 mV, Surface photovoltage Add on: Yes, Optical system: Color camera with zoom lens and TFT display, Digital TFT Oscilloscope: Yes

34972A – LXI Compliant Data Acquisition unit

Measurements include: DC Volts, AC Volts, Thermocouple, Thermistor, RTD Temperature, measurements, 2- and 4-wire resistance, AC Current, DC Current, Frequency Channels: 20 IO interface (USB, LAN, GPIB): Yes

Digits of resolution: DCV: 100 mV to 1000 V,ACV(RMS): 100 mV to 750 V,DCI: 100 µA to 10 A,ACI: 100 µA to 10 A,2- and 4-wire resistance: 100 Ω to 100 MΩ, Frequency, period: 3 Hz to 300 kHz,

Capacitance: 1.0 nF to 100.0 µF, Temperature: RTD/PT100, ThermistorDisplay: Color, GraphicalStatistical graphics: Histogram, bar chart, trend chart
