Composite and Advanced Materials Manufacturing Lab

• Internal dimension – 366 mm x 367 mm x 386 mm
• Maximum temperature - 1650 °C

Maximum operating temperature – 250 °C

Maximum operating temperature – 1200 °C

• Grinding bowl capacity - 250 ml
• Balls - 5 mm and 10 mm tungsten carbide balls

• Platen size – 500 mm x 500 mm
• Temperature – 300 °C
• Maximum operating pressure – 200 bar/3000 psi.

• Capacity of the press - 30 tons,
• Die  heater temperature-500 °C

• Shot Weight    - 30gms.
• Barrel Diameter   - 25mm
• Max. Mold Size  - 150 mm X 150 mm

• Maximum Capacity: 50 kN
• Cross Head Speed: 0.00005 to 1500 mm/min

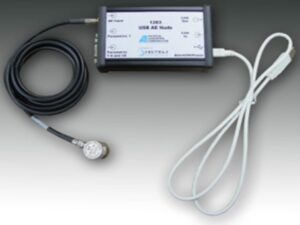

• AE Input - 1 Channel per USB node
• Sampling Frequency     - 20 MHz
